Implications of Ultrasound Mismatch: A Novel Case Report of Discrepancy between Bedside Versus Formal Biliary Ultrasound

Michael J. Burla1,2*, David A. Berger2, Abigail Brackney1,2 and Amit Bahl1,2

  • 1Department of Emergency Medicine, William Beaumont Hospital, Royal Oak, Michigan, USA
  • 2Oakland University, William Beaumont School of Medicine, Rochester, Michigan, USA

*Address for Correspondence: Michael Burla D.O, Department of Emergency Medicine, William Beaumont Hospital, Oakland University, 3601 W 13 Mile Rd, Royal Oak, Michigan, USA 48073, Tel: 248-898-9111; E-mail:
Citation: Burla MJ, Berger DA, Brackney A, Bahl A. Implications of Ultrasound Mismatch: A Novel Case Report of Discrepancy between Bedside Versus Formal Biliary Ultrasound. J Emerg Med Critical Care. 2015;1(2): 3.
Copyright © 2015 Burla MJ, et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Journal of Emergency Medicine & Critical Care| Volume: 1, Issue: 1
Submission: 22 August, 2015 | ISSN: 2469-4045 |Accepted: 18 September, 2015 | Published: 22 September, 2015
Reviewed & Approved by: Dr. Adeyinka Adedipe, Assistant Professor, Division of Emergency Medicine, University of Washington, USA


Ultrasound (US) is the gold standard imaging modality utilized to diagnose biliary disease. Point of care (POC) US in the emergency department (ED) can and has played an integral role in assessing patients for biliary disease to accelerate care. We report a case where bedside US in the ED was used as an important aspect of the patient’s initial work up. Our case involves a 29 year-old female who presented to the emergency department with skin jaundice and sclera icterus. The patient had a history of liver transplant for hepatoblastoma at age 22 months, and was advised to come to the ED when her primary care physician noticed elevated liver enzymes on a routine lab check. When presenting to the emergency department, the patient denied any abdominal pain or nausea, but was experiencing dark colored urine and tan colored stools. Due to the suspicious nature of the patient’s symptoms and history of present illness, a POC US in the ED was done which demonstrated a dilated common bile duct (CBD) secondary to visible stone, however the follow up complete abdominal ultrasound in the radiology suite subsequently was negative for pathology. Ultimately the patient received a magnetic resonance cholangiopancreatography (MRCP), demonstrated a gallstone in the common bile duct and reaffirmed the findings on POC US. The gallstone was removed and the patient received a revision of her hepaticojunostomy. This case demonstrates pathology recognized by the POC US performed in the ED, that was absent on radiology US, suggesting a transient and dynamic change in the gallstone’s positioning within the duct.


Ultrasound; Choledocholithiasis; Gallstone; Common bile duct; Emergency department; Bedside ultrasound; Point of care


The utilization of ultrasound (US) for evaluating biliary disease has been well established [1,2]. Biliary disease includes the presence of gallstone(s) or a gallstone within the common bile duct (CBD). Moreover, the benefits of POC US in the emergency department (ED) to assess for biliary disease have been illustrated in previous literature [3-7]. The true prevalence of gallbladder disease is unknown, however it is estimated that over twenty million Americans suffer from some variation of gallbladder disease [8]. Many of these patients will be seen and assessed in the ED with associated abdominal pain. We present a case of choledocholithiasis where CBD dilation was demonstrated on the initial ED POC US, but was negative with the subsequent radiology US. The discovery of an obstructing gallstone dilating the CBD was later confirmed via magnetic resonance cholangiopancreatography (MRCP), and removed surgically during revision of hepaticojunostomy. POC US in the ED played an integral role in the work up of this clinical scenario, ultimately correlating with MRCP findings, and leading to the appropriate treatment.

Case Report

The patient is a 29 year-old female who presents to the ED with mild jaundice and scleral icterus. She was sent in by her primary care physician due to abnormal liver function enzymes on routine lab work one day ago. The patient had a liver transplant for hepatoblastoma at age 22 months old, but had an otherwise unremarkable past medical history. The patient’s jaundice and scleral icterus has been gradually developing, and she states that she has also been experiencing dark colored urine and tan colored stools. The patient was not experiencing abdominal pain, and denied any other symptoms, such as chest pain, difficulty with breathing, coughing, fever, nausea, or vomiting.

On physical examination the vital signs were: blood pressure of 125/78 mmHg, heart rate of 99 beats per minute, respiratory rate of 20 breaths per minute, temperature of 36.2 °C, and a pulse oximetry of 99% on room air. The patient appeared well in the ED, oriented to person, place, and time. The patient’s skin and eye exam were positive for jaundice and scleral itcerus, respectively. Examination of the abdomen demonstrated a non-tender and well healed transverse abdominal incision, without evidence or right upper quadrant tenderness and a negative murphy’s sign. The rest of the patient’s physical exam was unremarkable. Given the patient’s presentation and history of recent abnormal lab work, blood work was done which demonstrated an alkaline phosphatase level of 585, aspartate aminotransferase of 280, alanine aminotransferase of 162, and a direct bilirubin of 4.2. Due to the abnormal lab work and physical findings, possible biliary disease with an obstruction was considered, and a POC US was performed at bedside in the ED. The findings of the POC US demonstrated a dilated CBD at 1.93 cm and gallstone within the CBD, illustrated in Figure 1 and Figure 2 respectively. The patient was admitted to the hospital, and a complete abdominal ultrasound was then ordered at the request of the admitting service. However, the radiology US demonstrated an unremarkable CBD, with a measurement of 5 mm illustrated in Figure 3. Additionally no gallstone was identified in the CBD or gallbladder. The radiology US was performed within one hour of the POC US, suggesting a dynamic change within the CBD.

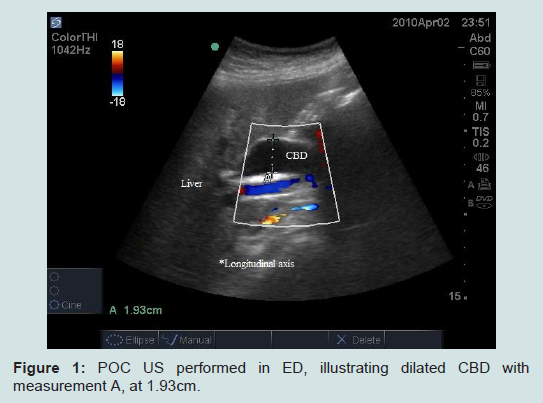

Figure 1: POC US performed in ED, illustrating dilated CBD with measurement A, at 1.93cm.

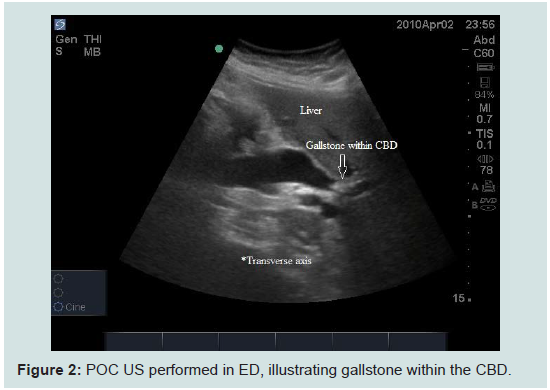

Figure 2: POC US performed in ED, illustrating gallstone within the CBD.

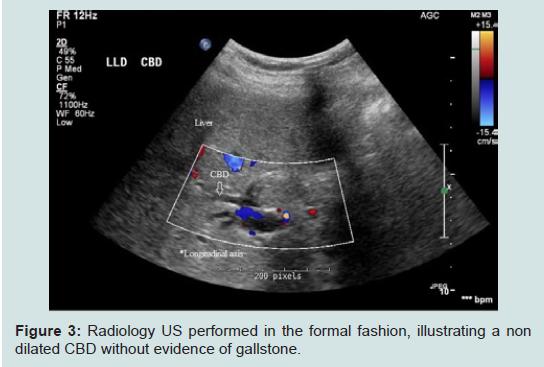

Figure 3: Radiology US performed in the formal fashion, illustrating a non dilated CBD without evidence of gallstone.

 During the patient’s hospital stay, consultations were made to gastroenterology, hepatology, nephrology, and transplant surgery. Additional work up was negative for hepatitis or transplant rejection. A magnetic resonance cholangiopancreatography (MRCP) was performed and demonstrated a large stone within the proximal CBD, measuring 3 x 1.8 cm. The gallstone was removed after CBD exploration and revision of her hepaticojunostomy. The patient’s surgery was unremarkable and several days after the procedure her liver function enzymes reduced to within normal limits. The patient was discharged home after receiving proper treatment of her condition, and a resolution of her symptoms.


This case illustrates a unique situation, where a dynamic change in CBD was observed within on one hour of presentation. Early POC US in the ED demonstrated an obstructing gallstone in the CBD, with the follow-up radiology US demonstrating a CBD diameter within normal limits. After admission the correct diagnosis of choledocholilthasis was confirmed with MRCP, the patient received definitive treatment of her condition. Previous literature has described cases of choledocholilthasis in unique settings, but almost none have demonstrated a case where the diagnosis was recognized on bedside US in the ED and not on follow-up radiology US. One case described by Jafari et al. demonstrated a fluctuating CBD diameter over a 72 hour period, with an initial dilated CBD on bedside US of 17 mm [9]. However, this CBD fluctuation was evident on multiple imagining modalities over the patient’s hospital stay, with the first radiology US being performed five hours after POC US. In addition, the patient had correlating symptoms of nausea, vomiting, and abdominal pain with CBD dilation, with a resolution of those symptoms when US demonstrated a CBD diameter within normal limits [9]. Our case differs from this case due to the fact that our patient did not experience any fluctuating symptoms of nausea, vomiting, and abdominal pain. Moreover, our patient was experiencing jaundice and sclera icterus without abdominal pain, which is atypical for an obstructing gallstone in the CBD. The transient changes in CBD diameter of our case within an hour suggest that dynamics of gallstone mobilization within a CBD can be very acute in nature. To our knowledge, there is no other.

Although our case is distinguishable from previous publications, it reinforces the benefit of POC US in the ED. Given the dynamic changes of the CBD in the presence of biliary disease, proper use of bedside US in the ED can provide early recognition of pathology and guide treatment. The implications for these dynamics suggest that multiple scans may bare different results, which is a factor clinicians should consider. Previous research has described sufficient abilities of non-fellowship trained physicians in recognizing biliary disease with bedside US [6,10], including Turner et al. describing that curriculum based simulated US programs can adequately provide emergency medicine physicians with US skills within a short period of time [10]. Additionally, Summers et al. demonstrated POC US in the ED had similar detection of cholecystitis comparted to radiology US [6]. With this understanding, the utility of POC US has been universally accepted as a means of obtaining additional information, especially when admission is warranted. Given the proper clinical context, emergency physicians should consider performing a bedside US study when biliary disease is suspected.
