Removal of Mixed Azo Dyes by a Moderately Alkaliphilic Bacterial Strain Isolated from Textile Effluent Contaminated Site

Rishika Lalith Kumar and Veena Gayathri Krishnaswamy*

  • Department of Biotechnology, Stella Maris college, Chennai, Tamilnadu, India

*Address for Correspondence: Veena Gayathri Krishnaswamy, Department of Biotechnology, Stella Maris college, Chennai, Tamilnadu - 600086, India, E-mail: veenagayathri@yahoo.com

Citation: Kumar RL, Krishnaswamy VG. Removal of Mixed Azo Dyes by a Moderately Alkaliphilic Bacterial Strain Isolated from Textile Effluent Contaminated Site. J Microbiol Microb Technol 2016;1(1): 9.

Copyright © 2016 Kumar RL, et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Journal of Microbiology & Microbial Technology | Volume: 1, Issue: 1

Submission: 05 May, 2016 | Accepted: 13 June, 2016 | Published: 16 June, 2016

Abstract

The aim of the present study was to isolate an alkaliphilic bacterial strain from textile effluent contaminated site and to investigate the ability of the bacterial strain to decolorize the mixed dyes, Direct Brown MR and Direct Yellow SG at different concentrations. The enriched moderately alkaliphilic bacterial strain could decolorize mixed azodyes (DB MR and DY SG) at different concentrations (50 to 250 mg/L). The bacterial strain exhibited maximum decolourization ability of mixed dyes at pH 9, at a concentration of 150 mg/L (90%) of DB MR and DY SG which showed the maximum degradation of 90% by the end of 5th day, at an optimum temperature at 28 °C. Supplementing the media with sucrose and yeast extract, as carbon and nitrogen source could enhance the dye decolourization efficiency of the isolated bacterial strain. The isolated mixed dye degrading bacterial strain was identified by 16S rRNA sequencing as Serratia marcescens. Such isolated bacterial strain could be applied to biological systems for the effective removal of these mixed dyes from textile effluent wastewater.

Keywords

Azo dyes; Textile effluent; Direct Brown; Direct Yellow; Alkaliphilic; Decolourization

Introduction

Our biosphere is under constant threat from continuing environmental pollution. Impact on its atmosphere, hydrosphere and lithosphere by anthropogenic activities on air, water and land have a negative influence over biotic and abiotic components of the natural ecosystems. Among the various industrial sectors, the textile and paper industries are especially challenging since they generate significant quantities of wastewater that may have detrimental impacts when released into the environment without any treatment. Textile wastewater is one of the most polluted of the wastewaters due to the lag large variety of dyes and chemical additions contained in it, which complicates further treatment of the textile wastewater. Azo dyes are mostly used in textile industry due to their extensive variety of colour shades and brilliant colours but they are recalcitrant xenobiotics. They are a common classification of dyes, accounting for between 60 - 80% of all dyes. This class of dyes gives off bold colours in a variety of hues [1].

In order to achieve satisfactory and acceptable quality levels that allow recycling of textile wastewater, removal of dyes and related compounds is very crucial. Based on the fact that also dyes constitute the largest percentage of textile dyes, most treatment methods are based on the decolourization of azo dyes [2]. Physical methods include traditional physical-chemical technique such as ultra filtration, reverse osmosis, ion exchange and adsorptionon various adsorbents (activated carbon, peat, fly ash, and coal, wood chips, and corncob). Adsorption techniques are more popular due to theirs Efficient in the removal of pollutants too stable for conventional methods [3]. Widely used techniques in Chemical methods include oxidation reactions, photochemical oxidations and electrochemical treatment of which, oxidation processes are the most common [4-6]. This is primarily due to its simplicity of application with hydrogen peroxide being the main oxidizing agent. Chemical oxidation removes the dye from the dye-containing effluent by oxidation, resulting in aromatic cleavage of the molecules [1]. Other newer emerging techniques which include oxidation with Fenton’s reagent photo catalysis, and ozonation have shown great potential for effectively removing dyes from wastewaters [7]. These techniques, however, involve complicated procedures and are economically unfeasible for application on a commercial scale [8]. Use of ultra-violet light in photo catalysis is not effective for dark coloured effluents as the UV cannot penetrate the depth of the waste water. Chemical treatment methods also pose a serious threat of introducing secondary pollution due to excessive chemical use [9].

The Biological methods involving microbial decolourization of azo dyes has been of much interest, since it is inexpensive, ecofriendly and produces a less amount of sludge [10,11]. Most of the azo dyes are difficult to degrade because azo bonds in the dyes are resistant to breakdown, with the potential for the persistence and accumulation of high-levels of dye in the environment.

Options for biological treatment of textile effluent may be single phase aerobic or anaerobic or a combination of the both aerobic and anaerobic treatment. Under aerobic conditions the azo dyes are nondegradable by most of the bacteria. Anaerobic biological treatment makes use of the anaerobic bacteria decomposed organic matter in anaerobic conditions. They are very stable in acidic and alkaline conditions and are resistant to temperature and light.

As dyeing effluents are characterized by high levels of alkalinity and salinity, the application of extremophilic microorganisms is inevitable for practical bio-decolourization process as they are able to sustain the stringent conditions of textile dyeing effluents [12]. A novel biological decolourization system consisting of one or more acclimatized dye degrading organisms in optimized concentration is needed [5]. Under aerobic conditions the azo dyes are non-degradable by most of the bacteria. Anaerobic biological treatment makes use of the anaerobic bacteria decomposed organic matter in anaerobic conditions. They are very stable in acidic and alkaline conditions and are resistant to temperature and light.

A number of microorganisms have been found to decolorize textile dyes including bacteria, fungi, and yeasts from concentration 50 - 300 mg/L [13]. They have developed enzyme systems for the decolourization and mineralization of azo dyes under certain environmental conditions [14]. The extracellular enzyme system includes Laccase (EC 1.10.3.2), Manganese peroxidase (MnP, EC 1.11.1.13), Lignin peroxidase (LiP, EC 1.11.1.14) that are able to decolorize various dyes of different chemical structures [15].

Thus, this study focuses on aerobic decolourization of mixed azo dyes by alkaliphilic bacterial strain isolated from textile effluent contaminated soil. The study was designed to decolourize mixed azo dyes by the isolated bacterial strain at various concentrations. The bacterial strain was optimized for its growth conditions for the effective removal of mixed azo dyes (Direct Brown MR and Direct Yellow SG). Further the bacterial strain was biochemically characterized and identified by 16S rRNA sequencing.

Materials and Methods

Dyes and chemicals

The textile dyes (azo dye compounds), Direct Brown MR and Direct Yellow SG, were purchased from the local textile industry, Chennai, Tamilnadu. Figure 1 shows the structure of the Azo dyes used in the study. Nutrient agar media and all other chemicals used in mineral salt medium (MSM) preparation were of analytical grade and purchased from Merck, India.

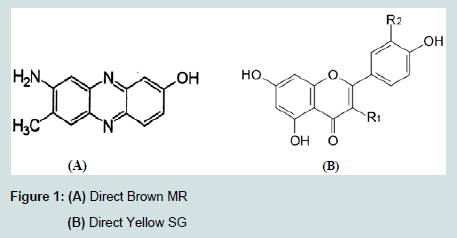

Figure 1: (A) Direct Brown MR                 (B) Direct Yellow SG
Sample collection

Soil samples were collected from different areas of effluent contaminated sites of textile industries in Chennai. Samples were collected and transferred to sterile zip lock covers and immediately transported to the laboratory.

Acclimatization of the bacterial Strain and culture conditions

The bacterial strain was enriched in MSM amended with 100 mg/L of of filter sterilized DB MR and DY SG dyes in a sterilized 250 ml conical flask containing the MSM and incubated in a shaker at 37 °C. The composition of the MSM (pH 9) used for enrichment and decolourization was as follows: Na2HPO4: 12.8 g/L; KH2PO4: 3 g/L; NH4Cl: 1 g/L; NaCl: 0.5 g/L; 0.05 M MgSO4: 10 mL/L; 0.01 M CaCl2: 10 mL/L; and 20% glucose: 30 mL/L. The MSM was autoclaved, cooled, and then amended with 100 mg/L of filter sterilized azo dyes DB MR and DY SG in a 250 mL Erlenmeyer flask respectively. About 10 g of soil sample was aseptically inoculated into the medium. Individual bacterial isolates were obtained from the enriched culture by plating on nutrient agar medium containing 100 mg/L of the mixed azo-dyes. The isolated bacterial strain was purified by streaking on nutrient agar added with 100 mg/L of the mixed dyes. The single colony pure cultures were stored in 15% glycerol at -20 °C.

Growth of the bacterial strain

Sterilized 100 ml of MSM was amended with DB MR and DY SG dyes of mixed dyes at concentrations of 50 mg/L to 250 mg/L (50 mg/L, 100 mg/L, 150 mg/L, 200 mg/L and 250 mg/L). 1 ml of overnight culture was added to each flask and incubated in a shaker at 37 °C. Growth OD at 540 nm was observed at 24 hours interval till the 5th day, to observe the growth pattern of the bacterial strain. Growth of the bacterial strain was also confirmed through total protein estimation and was observed till the 5th day.

Decolourization of mixed dyes

Decolourization of DB MR and DY SG by bacterial strain was observed till 5th day, according to Pokharia and Ahluwalia [16]. The dye discoloration was measured with a UV spectrophotometer every 24 hour interval during the discoloration process. The mixture of dyes was prepared by adding reactive, disperse and direct dyes (100 mg/L concentration of each dye; Direct Brown MR and Direct Yellow SG. Decolourization was measured at λ max of the dye mixture. The selection of suitable wavelength in the spectrum can be made during the course of preparing of the calibration curve for the unknown samples. The particular wavelength which provides a maximum absorbance value will be considered as the best choice of wavelength. Reactive dye solutions show maximum absorbance at a wavelength of 450 nm. The decrease in absorbance was monitored at λ max for the particular dye. Decolorized sample (5 ml) withdrawn periodically, was centrifuged at 10000 rpm for 15 min and its absorbance was measured at λ max of the dye. The uninoculated dye free medium was used as blank. All assays were performed in duplicates and compared with the un-inoculated control. The colour removal efficiency of the bacterial consortium was determined as follows [16]:
Measurement of total protein using Barford’s method

Total cell protein was analysed by centrifuging the samples at 12,000 rpm for 10 min and washed with fresh (substrate-free) mineral medium, then centrifuged and washed few times to remove the substrate. The pellet from each sample was then disrupted by sonication at 30% amplitude for a total of 3 min (1.5 min x 2) on an ice-water bath. Sample (0.5 ml) was added to 0.5 mL Coomassie Blue protein dye and the absorbance were measured at 595 nm. The total protein concentration was determined by calibration with bovine serum albumin standard according to Bradford [17].

In order to study the effect of pH and temperature, the sterilized MSM was amended with 150 mg/L of each of the DB MR and DY SG dyes. The medium was maintained at different pH: 8, 8.5, 9, 9.5, and 10. A volume of 1 mL of overnight culture was inoculated in the flasks and incubated in a shaker at 36 °C. The effect of temperature was studied by inoculating overnight culture and incubating in a shaker at 28 °C, 36 °C, and 45 °C. The medium was maintained at pH 9.5. The measurement of decolourization of the total dye concentration was performed at an interval of 24 h for 5 days.

Effect of carbon and nitrogen sources on the decolourization of mixed dyes

The effect of carbon sources was studied using various compounds, such as sucrose, galactose, maltose and xylose at a concentration of 1% and they were added individually as a supplement to MSM for the decolourization of mixed dyes. A volume of 1 ml of the overnight culture was inoculated in the flasks and incubated in a shaker at 37 °C. Nitrogen sources like yeast extract, peptone, Tween 20, yeast extract and NH4NO3 at a concentration of 1% was substituted to the MSM and the growth and decolourization of the mixed dyes was measured as above. Optimum carbon and nitrogen source i.e. sucrose and yeast extract at a concentration of (1% and 1%) were substituted to MSM and the growth and decolourization of the mixed dyes was measured.

FT-IR analysis

The control and samples obtained on Day 1 and Day 5 were extracted with ethyl acetate were dried and mixed with KBr (1:20; 0.02 g of sample with KBr at a final weight of 0.4 g). The samples were then ground, desorbed at 60 °C for 24 h and pressed to obtain IR-transparent pellets.

The absorbance FT-IR spectra of the samples were recorded using an FT- IR Spectrum 2000 Perkin-Elmer spectrometer. The spectra were collected within a scanning range of 400 - 4000 cm-1. The FT-IR was first calibrated for background signal scanning with a control sample of pure KBr and then the experimental sample was scanned. The FT-IR spectrum of the control was finally subtracted from the spectra of the non-degraded and degraded dyes.

Biochemical characterization

The bacterial strain isolated was studied for morphological and biochemical characteristics. Initially, Gram staining and motility test were performed after which biochemical characterization was done (with Himedia, India) to identify the phenotypic characters of the bacterial strains. Catalase, Oxidase, Urease, IMViC and Triple sugar iron agar tests were performed to determine the biochemical characteristics of the isolate. After 24 h incubation at 37 °C, the colour change observed was determined as positive/negative result. Genus level identification of the unknown bacterial strain was accomplishedby using Bergey’s Manual of Systematic Bacteriology [18].

Molecular characterization

Chromosomal DNA was isolated from the pure strain by the standard phenol/chloroform extraction method. The 1.2 kilo base partial sequence of the 16S rRNA gene was amplified from the chromosomal DNA using polymerase chain reaction (PCR) with universal Eubacteria-specific primers 16F27 (5’- CCA GAG TTT GAT CMT GGC TCA G - 3’) and 16R1525XP (5’- TTCTGCAGT CTA GAA GGA GGT GWT CCA GCC -3’). The PCR conditions used were an initial denaturation at 94 °C for 2 min, followed by 35 cycles of denaturation at 95 °C for 1 min, annealing at 55 °C for 1 min, and extension at 72 °C for 1 min, and a final extension at 72 °C for 10 min and sequenced on an ABI310 automated DNA sequencer using the BigDye Terminator kit (Applied Biosystems 3730 x DNA Analyzer). The amplified 16S rRNA gene PCR products from these isolates were directly sequenced after purification by precipitation with polyethylene glycol and NaCl. The primers used to obtain the complete sequence of 16S rRNA gene of the isolates were the same as for PCR amplification (16F27N and 16R1525XP).

Sequence data analysis was done using ChromasPro and Sequencing Analysis software. Further, phylogenetic tree was constructed using MEGA6. The evolutionary history was inferred using the neighbour-joining method. The optimal tree with the sum of branch length = 0.04720271 is shown. The tree is drawn to scale, with branch lengths (next to the branches) in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The evolutionary distances were computed using the maximum composite likelihood method and are in the units of the number of base substitutions per site. The analysis involved 14 nucleotide sequences. Codon positions included were 1st + 2nd + 3rd + Noncoding. All positions containing gaps and missing data were eliminated. There were a total of 694 positions in the final dataset. Evolutionary analyses were conducted using MEGA6.

Result and Discussion

The combined effect of an increase in the number of industries and development has led to an increase in industrial based pollutants which pose a serious threat to the ecosystem and human health. Textile industries occupy a large section of the total industries and are a major contributor to wastewater. This coloured wastewater from textile industries contain a high percentage of azo dyes which are increasingly used because of their ease of application and cost effectiveness when compared to natural dyes [19].

Textile wastewater is also potentially carcinogenic and harmful, which if untreated is discharged into the ecosystem either by seepage into aquifers to underground water bodies or into established mainstream water bodies. Physico-chemical treatment methods have managed to remove the effluent from the water to a certain extent, but have also aggravated the problem by introducing secondary effluent through chemicals used in the effluent treatment. This has led man to turn back to Mother Nature to try, where application of microorganisms in the treatment of various industrial wastes, including dye containing effluent have been investigated for the last two decades [20]. This study aims to isolate alkaliphilic bacterial strain that can be used for the removal of mixed dyes as textile wastes tend to have high pH.

Screening and isolation of bacterial strain degrading the DB MR and DY SG

During the enrichment period, about three bacterial strains were able to survive on the mixed azo dyes (DB MR and DY SG) at a concentration of 100 mg/L under alkaline condition. After successive transfers only single bacterial strain labelled (RLK 1) utilized mixed azo dyes as a sole carbon and energy source. Figure 2 shows that there was an increase in the viable cell count of the strain from 1st day to 2nd day. By the end of the 3rd day, there was a decrease in viable cell count and bacterial strain could not survive after the 5th day. Hence, for the further experiments, the growth and decolourization of mixed dyes was analyzed at the end of 5th day. Decolourization of the mixed dyes was carried out from 50 mg/L concentration to 250 mg/L as the mixed dyes in the textile effluent existed from 50 to 500 mg/L [8,13,14].

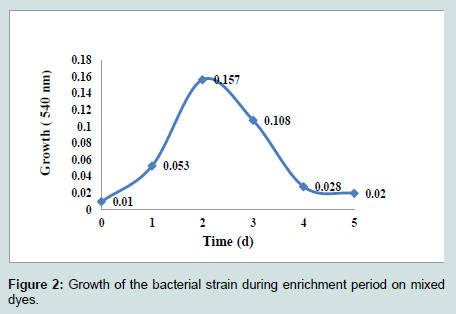

Figure 2: Growth of the bacterial strain during enrichment period on mixed dyes.
The decolourization of the mixed azo dyes (DB MR and DY SG) by the isolated bacterial strain decreased to 84% when the concentration was increased to 250 mg/L. Several research works have shown that increase in the concentration of substrates (dyes) from its optimum level has a negative effect on the decolourization capacity of the isolates. Several investigations on decolourization at different dye concentrations have shown higher net colour removal at lower concentrations of dyes [18,21,22]. In this study as well, the isolated bacterial strain showed maximum decolourization of the mixed azo dyes (DB MR and DY SG) at concentration of 150 mg/L respectively which were found to be 90% by the end of 5th day.

Mixed Azo-Dyes (DB MR and DY SG) decolourization by the bacterial strain

The ability of the isolated bacterial strain to utilize DB MR and DY SG as a sole carbon and energy source was studied at 50 mg/L to 250 mg/L (50 mg/L, 100 mg/L, 150 mg/L, 200 mg/L and 250 mg/L). The rate of decolourization increased with increase in initial dye concentration from 50 to 150 mg/L, whereas decolourization decreased at 250 mg/L. The mixed azo dyes at 50 mg/L of concentration showed decolourization up to 80% by the end of the 5th day. This was followed by 100 mg/L of concentration of mixed dyes, which showed decolourization up to 83%, at 150 mg/L of concentration maximum dyes which increased from the 1st day to 2nd day (6.62 to 9.4 mg/ml). The increase in the total protein content and removal of mixed dyes at various concentrations is mentioned in the Figure 3. When the concentration of mixed dyes was increased to 250 mg/L, there was reduction in the decolourization of the mixed dyes to 84% and there was a corresponding decrease in total protein content (8.15 to 6.41 mg/ml from Day 1 to Day 2. Figure 4 shows the decolourization of mixed dyes at various concentrations.
Figure 3: Decolourization of mixed dyes by the isolated bacterial strain at 150 mg/L.

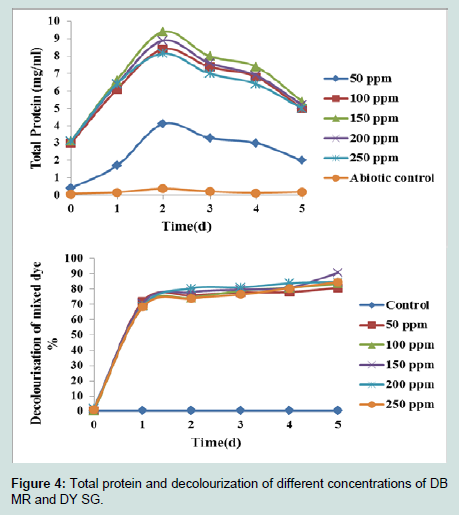

Figure 4: Total protein and decolourization of different concentrations of DB MR and DY SG.
Effect of pH on the decolourization of mixed dyes

Alkaline pH plays an important role in the metabolism of alkaliphilic bacteria. The study was carried out to determine the effect of pH (pH 8, pH 8.5, pH 9, pH 9.5 and pH 10) on the decolourization of mixed dyes at optimum concentration of 150 mg/L respectively. The increase in the total protein content and the removal of mixed dyes at various pH is mentioned in the Figure 5. Maximum decolourization was observed at pH 9 (78 %) and minimize discoloration was observed at pH 10 which was found to be 72 % by the end of the 5th day. Total protein content was found to be maximum at pH 9 (6 mg/ml to 9.35 mg/ml). These results proved that the isolated bacterial strain was alkaliphilic in nature. Decolourization of mixed dyes (150 mg/L) bythe isolated bacterial strain at pH 9 is represented in Figure 5.

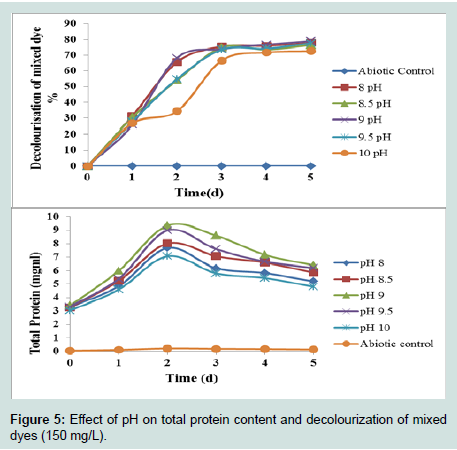

Figure 5: Effect of pH on total protein content and decolourization of mixed dyes (150 mg/L).
pH of the medium is one of the most important parameters for any microbial processes. The pH tolerance of decolourizing bacteria is quite important because reactive azo dye bind to cotton fibers by addition or substitution mechanisms under alkaline condition and high temperatures [23]. Several studies have shown decolourization of dyes at varying optimum pH based on the organisms isolated. A study of bio decolourization of mixed dyes by Rashid Mohammed et al. has shown decolourization by the isolates in the range of pH 6 to 9 with optimum pH being pH 7 [1].

Prasad and Rao reported Bacillus cohnii MTCC 3616 showed degradation of 95% efficiency at pH 9 in 4 h under static conditions. The effects of various pH on decolourization of Ranocid Fast Blue (RFB) and Procion Brilliant Blue-H-GR (PBB-HGR) were studied with Serratia marcescens and found that the bacteria can decolorize the dyes over a wide range of pH (5 to 9) with optimum at pH 7 [21]. In the present study, the isolated bacterial strain showed maximum decolourization of mixed dyes (DB MR and DY SG) up to 78% at pH 9 at the end of 5th day.

Effect of temperature on the decolourization of mixed dyes

Temperature is one of the most important parameters, in the decolourization of dyes. It plays important role in microbial growth and enzyme activity. The dye decolourization activity of strain was found to be maximum at 28 °C (94%). The temperature 45 °C showed the least decolourization of mixed dyes which was found to be 73% (Figure 6). The temperature 28 °C was found to be the optimum concentration for efficient decolourization of mixed dyes. Total protein content was found to be maximum at 28 °C (6.48 mg/ ml to 9.1 mg/ml from Day 1 to Day 2). Decolourization of mixed dyes decreased with increase in incubation temperature at 28 to 45 °C. Decolourization of mixed dyes by the bacterial strain at 28 °C is represented in Figure 6.

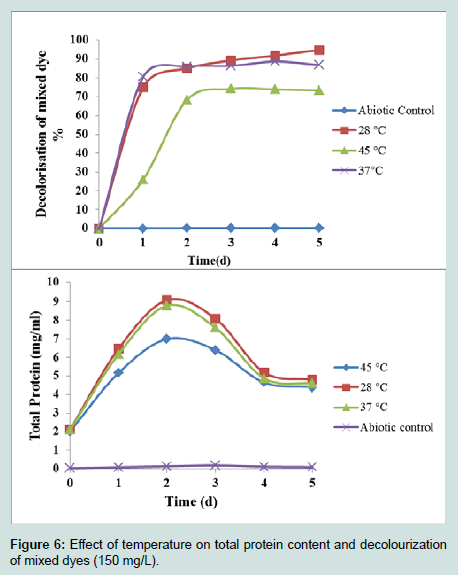

Figure 6: Effect of temperature on total protein content and decolourization of mixed dyes (150 mg/L).
According to a study conducted by Rashid Mohammed et al. the effects of various temperatures (27 to 47 °C) on decolourization of mixed dyes by bacterial consortium, was studied in which their results suggested that optimum colour removal was at 37 °C [1]. Pradeep Varma reported on the effect of various temperatures (25 to 50 °C) on decolourization of Ranocid Fast Blue (RFB) and Procion Brilliant Blue-H-GR (PBB-HGR) by Serratia marcescens they have observed faster decolourization at 26 °C within 24 h incubation [24]. In the present study, the optimum temperature for decolourization of mixed dyes by the isolated bacterial strain was found to be 28 °C which showed decolourization up to 94% by the end of 5th day. Optimizations of temperatures by Klebsiella sp. showed decolourization at 37 °C , no decolourization was observed at 47 °C similar report was observed [24,25].

Effect of carbon sources on the decolourization of mixed dyes

To examine the influence of carbon sources on the decolourization of mixed dyes at optimum concentrations (150 mg/L), carbon sources like sucrose, galactose, xylose and maltose were supplemented in the MSM along with DB MR and DY SG. Figure 7 shows that, almost all the carbon sources were able to enhance the decolourization of mixed dyes. An increase in decolourization was observed in the presence of sucrose as carbon source which showed maximum decolourization up to 84% by the end of 5th day. This was followed by xylose, maltose and galactose which showed 83%, 82% and 78% of decolourization respectively by the end of the 5th day. Total protein content was found to be maximum with sucrose (6.45 mg/ml to 9.2 mg/ml from Day 1 to Day 2).

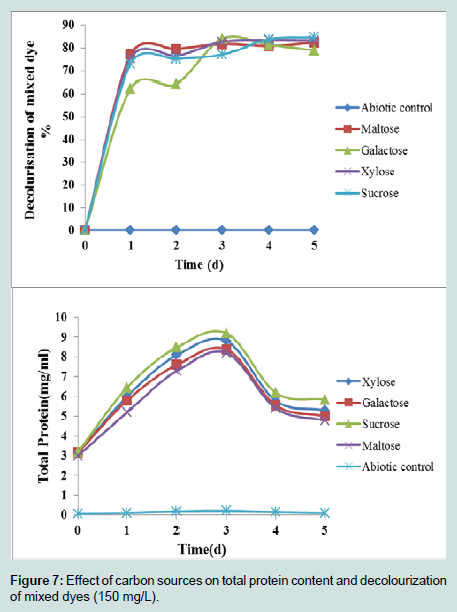

Figure 7: Effect of carbon sources on total protein content and decolourization of mixed dyes (150 mg/L).
Ponraj et al. have reported the range of activity on decolourization of orange 3R with 1% sucrose as carbon source by Bacillus sp., Klebsiella sp., Salmonella sp., and Pseudomonas sp., showing decolourization of 87.80%, 72.36%, 86.18% and 80.49% respectively with the bacterium Bacillus sp. as the most effective decolourizer with sucrose as carbon source [26]. Among the carbon sources used in the present study for optimization of decolourization, sucrose could enhance the growth of the bacterial consortium more effectively when compared to other carbon sources used.

Effect of nitrogen sources on the decolourization of mixed dyes

The influence of nitrogen sources on the decolourization of mixed dyes at optimum concentration (150 mg/L), various nitrogen sources like yeast extract, peptone, Tween 20 and Ammonium nitrate (NH4NO3) were supplemented in MSM along with DB MR and DY SG at 150 mg/L respectively. Figure 8 show that the addition of nitrogen sources could enhance the growth and decolourization of mixed dyes. Yeast extract showed the maximum decolourization of 90% by the end of 5th day. This was followed by NH4NO3, peptone and Tween 20 which showed decolourization of 84%, 83% and 81% respectively by the end of 5th day. Total protein content was found to be maximum in the media supplemented with yeast extract (6.76 mg/ml to 9.4 mg/ml from Day 1 to Day 2). Tween 20 supplemented media showed the least decolourization up to 81% and did not play much role in improving the decolourization of mixed dyes. Nitrogen sources like yeast extract, beef extract and peptone were used and the decolourization was high in Yeast extract reported a Bacillus sp. decolorized by 87% Orange-3R dye of sucrose and Beef extract as carbon and Nitrogen sources [26].

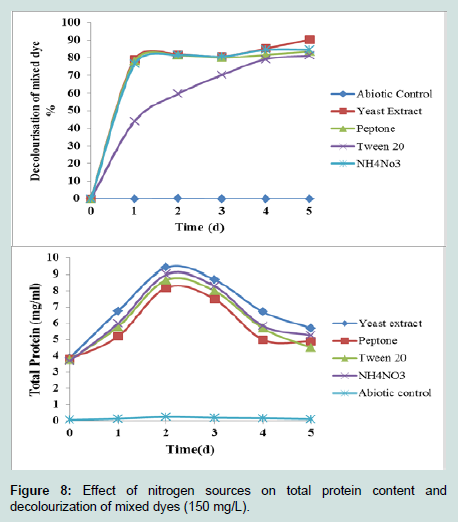

Figure 8: Effect of nitrogen sources on total protein content and decolourization of mixed dyes (150 mg/L).
Effect of mixed carbon and nitrogen sources on the decolourization of mixed dyes

To increase the degradation efficiency, ideal carbon and nitrogen used in the previous experiments were combined and mixed and dye degradation was checked at optimum concentration (150 mg/L). Figure 9 shows that the addition of a combination of yeast extract and sucrose could further enhance the decolourization of mixed dyes which was found to be 94% by the end of 5th day. Total protein content also increased from 6.7 mg/ml to 9.9 mg/ml from Day 1 to Day 2. Combinations of different co-substrates glucose and yeast extract, sucrose and yeast extract showed maximum decolourization activity. Similar work was reported [12,27]. Maulin et al. described the use of Bacillus spp. ETL-1979 for sequential decolourization and detoxication [28].

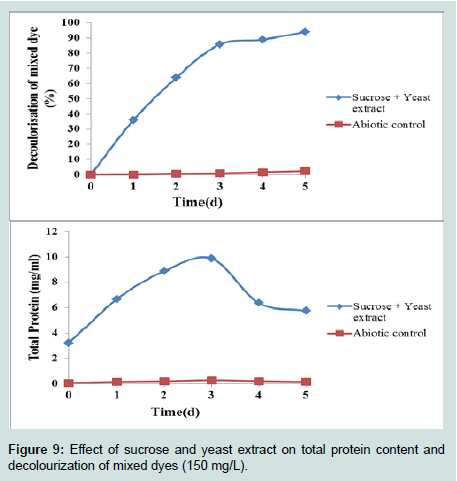

Figure 9: Effect of sucrose and yeast extract on total protein content and decolourization of mixed dyes (150 mg/L).

FT-IR analysis

The FT-IR spectrum of the original mixed dye (Control) and decolourized mixed dye (48 hours) by isolated bacterial strain were compared. The spectrum of the control dye displayed a peak 3418.11 cm-1 for -NH stretching (Figure 10). The stretching between C-N was reported at 2271.30 cm-1and amide, 5-membered ring peak at 1706.86 cm-1. The peak at 1637.21 cm-1 showed carbonyl stretching vibration. Peak at 1374.15 cm-1 showed unsaturated nitrogen compounds. Peak at 1229.06 cm-1 showed S = O stretching vibrations. The peak at 1106.62 cm-1 indicates the aromatic nature. The peak at 616.95 cm-1 showed hydrocarbon chromophore - C - H bending.

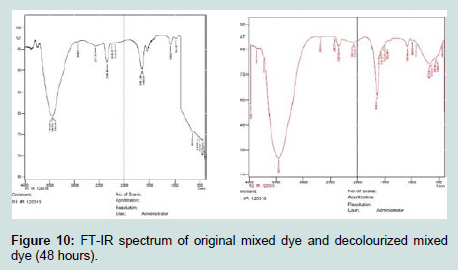

Figure 10: FT-IR spectrum of original mixed dye and decolourized mixed dye (48 hours).
The FT-IR spectrum of 48 hours decolorized dye by the isolated bacterial strain (Figure 11) showed a significant change in positions of peak, when compared to the control dye spectrum. A new peak at 1636.59 cm-1 represented - N = N - stretching vibration. The C-H deformation showed at 1398.13 cm-1. The peak at 3408.37 cm-1 showed N - H stretching vibration. This change in the functional groups of the mixed dye proved the breakage of the aromatic ring and formation of amino groups which clearly indicated the decolourization of the mixed dyes by the bacterial strain.
Figure 11: Genomic DNA and PCR amplified products; Lane 1 = Genomic DNA of RLK1; Lane 2 = PCR amplified product of RLK1; Lane 3 = 1 kb DNA ladder.
Biochemical characterization

Biochemical characterization of the strain was performed using several tests for the identification of the strains. According to biochemical tests, this strain showed positive result for Catalase, Methyl Red, Citrate and negative result for Urease, Indole, Voges- Proskauer. An alkaline butt and alkaline slant was observed as a result of Triple sugar agar test. The isolated strain had round shaped colonies with smooth and irregular morphology on the nutrient agar plate. RLK 1 showed small, round and pink colour colonies. The results figured from the biochemical test showed the bacterial strain belongs to the genus Serratia. Table 1 summarizes the results on the biochemical tests of the isolated bacterial strain.

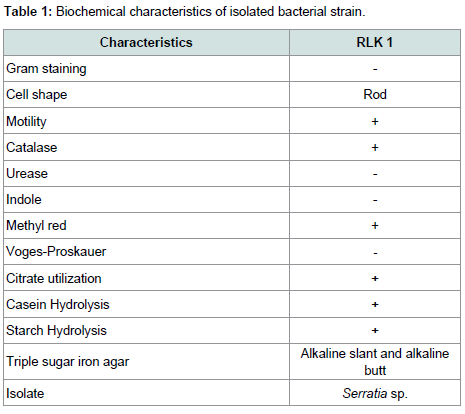

Table 1: Biochemical characteristics of isolated bacterial strain.


Genomic DNA Extraction and PCR Amplification

The genomic DNA was isolated from the bacterial isolate. PCR amplification was performed and the unknown bacterial strain was identified through 16S rDNA sequencing. The bacterial isolate was identified from the sequence using BLAST tool. Genomic DNA and PCR amplified products of the bacterial isolate are shown in Figure 11.

Phylogenetic analysis

This bacterial strain belonging to the phyla Proteobacteria, is a motile, gram negative, rod shaped bacteria that are naturally found in soil. RLK 1 strain belongs to Kingdom: Bacteria, Phylum: Proteobacteria, Class: Gamma Proteobacteria, Order: Enterobacteriales, Family: Enterobacteriaceae, Genus: Serratia, Species: S. marcescens.

Phylogenetic analysis based on nucleotide sequences from RLK 1 strain showed a maximum of 99% identity towards Serratia marcescens strain JCM 1239 (Figure 12). Hence, RLK 1 was identified as Serratia marcescens. Pradeep Varma (2003) reported that a novel dye-decolourizing strain of the bacterium Serratia marcescens efficiently decolourized two chemically different dyes Ranocid Fast Blue (RFB) and Procion Brilliant Blue-H-GR (PBB-HGR) [22]. More than 90% decolourization of PBB-HGR and RFB was obtained on Day 8 and Day 5, respectively at 26 °C under static conditions at pH 7.0 and have shown the phylogenetic tree of S. marcescens with related organisms based on 16S rRNA sequences. In this study, phylogenetic analysis of the bacterial isolate from the 16S rRNA sequences have shown that the bacterial isolate belong to the genus Serratia and have raised from a common ancestor [29].

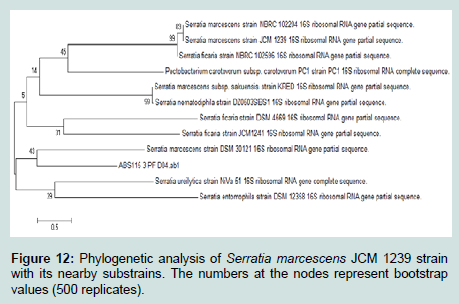

Figure 12: Phylogenetic analysis of Serratia marcescens JCM 1239 strain with its nearby substrains. The numbers at the nodes represent bootstrap values (500 replicates).
The results obtained from the present study showed that the isolated moderately alkaliphilic bacterial strain could decolourize the textile azo dyes (DB MR and DY SG) under aerobic conditions. However the future work on the identification of gene present in the bacterial strains could help in enhancing the decolourization of azo dye. This isolated bacterial strain could finally be used in the treatment of wastewater containing mixed azo dyes.

Conclusion

Since the levels of wastes produced are increasing with the rise in the water pollutants that are often difficult and costly to treat, we can conclude that the usage of dye degrading bacteria to degrade dyes and reduce their toxicity is a cheaper, more efficient, environmentally friendly and less expensive method and may serve as a good alternative for dye removal from industrial wastewaters.

Biological approach towards dye decolourization has been found to be conducive and cost effective when compared to physicalchemical methods of dye removal. There are no chemicals or harmful substances that are used in biodecolourization of dyes and hence toxicity level is even more reduced. From this present study, it can be concluded that enriched moderately alkaliphilic bacterial strain can be used for decolourizing mixed azo-dyes (DB MR and DY SG) at an optimum concentration of 150 mg/L. The bacterial strain exhibited maximum decolourization ability of mixed dyes at pH 9 and at a concentration of 150 mg/L of DB MR and DY SG and at an optimum temperature at 28 °C. Supplementing the media with sucrose and yeast extract could greatly enhance the dye decolourization ability of the bacterial strain. On the basis of these results, the bacterial strain can be applied in biological systems for effective removal of the mixed azo dyes in wastewater.
