Correlation of Bedside Ultrasonographic Measurement of IVC Diameter and Caval Index with CVP in Spontaneously Breathing and Mechanically Ventilated Patients

Heba Wagih Abdelwahab1* and Reham Abd El-Wahab2

  • 1Chest medicine department, Mansoura University, Egypt
  • 2Radiology department, Mansoura University, Egypt

Address for Correspondence: Heba Wagih Abdelwahab, Chest Medicine Department, Mansoura University, Egypt, Tel: 00201000670365; E-mail: Wagihheba84@gmail.com
Citation: Abdelwahab HW, El-Wahab RA. Correlation of Bedside Ultrasonographic Measurement of IVC Diameter and Caval Index with CVP in Spontaneously Breathing and Mechanically Ventilated Patients. J Emerg Med Critical Care 2017;3(1): 2.
Journal of Emergency Medicine & Critical Care | ISSN: 2469-4045 | Volume: 3, Issue: 1

Submission: 08 November, 2017| Accepted: 06 December, 2017 | Published: 16 December, 2017
Copyright: © 2017 Abdelwahab HW, et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Background: One of the important parameters in the hemodynamic evaluation of critically ill patients is central venous pressure (CVP). Sonographic measurement of the inferior vena cava (IVC) diameter and caval index (IVC collapsibility index) is a non-invasive method of estimating the fluid status in critically ill patients. In this study, we aimed to detect the correlation between IVC diameter and caval index with CVP in both spontaneously breathing and mechanically ventilated patients.
Methods: The anterior posterior diameter of the IVC just caudal to the confluence of the hepatic veins was measured during inspiration and expiration to calculate the IVC diameter and caval index. CVP was detected in cm H2O.
Results: As regard correlation between IVC measurements (IVC diameter and caval index) and CVP, regression coefficients were higher among spontaneously breathing than mechanically ventilated patients. In sedated patients, the mean difference between inspiratory and expiratory IVC diameter is not of clinical significance. The mode of mechanical ventilation and peak inspiratory pressure were insignificant in prediction of CVP.
Conclusion: Ultrasonographic assessment of IVC diameter and caval index seems to be a simple and non-invasive method to assess the fluid status in spontaneously breathing patients but its use in mechanically ventilated patients is not helpful.

Keywords

CVP; Hemodynamic monitoring; Caval index; IVC diameter

Introduction

Evaluation of intravascular volume status in critically ill patients is very essential. Central venous catheter insertion is needed to determine the CVP which is used to detect the fluid need. Complications such as arrhythmias, pneumothorax, haemothorax, hematoma, infection and thrombosis may occur with catheter insertion [1]. Sonographic evaluation of the IVC diameter and its usefulness in evaluating the volume status are studied and documented [2]. Ultrasound imaging has several advantages; it is simple, noninvasive and can be used for repeated assessment. Ultrasound units are present in most intensive care units to routinely perform the focused assessment sonography in critically ill patients [3]. The IVC is a thin-walled and compliant vessel. By changing its diameter, it adjusts to the body’s volume status. Inspiration generates negative pressure which results in increase venous return, subsequently collapsing the IVC. Expiration decreases venous return and the IVC diameter returns to its original value. In cases of decreased intravascular volume, the degree of IVC collapse will be proportionally higher than in cases with increased intravascular volume. The IVC collapsibility is determined by the calculation of the caval index (%) [4]. In this study, we aimed to detect the correlation between IVC diameter and caval index with CVP in spontaneously breathing and mechanically ventilated patients to provide IVC assessment as a guiding method in evaluation of the intravascular volume status.

Methods

Patients admitted to critical care unit and whom a central venous catheter was inserted was included in the study. However, Patients refuse to participate in the study, presence excessive bowel gas or obese patients were excluded.

The IVC diameters and caval index measurement

To measure the IVC diameter, a curvilinear probe of the Mind ray ultrasound device will be placed in the subxiphoid region (in the longitudinal plane) to visualize the point at which hepatic veins empties in the IVC. Localization of the heart was done by cranial angulation of the ultrasound probe in this plane. The maximum internal anterior posterior diameter of the IVC just caudal to the confluence of the hepatic veins (2-3 cm from the border of the right atrium) was measured in millimeters at the end of inspiration and expiration.
Caval index (%) measured as following:
IVC expiratory diameter - IVC inspiratory diameter/ IVC expiratory diameter×100

Central venous pressure measurement

The reference point (level of the right atrium=zero point) was taken at the level of the fourth costal cartilage in mid-axillary line. CVP measurements were hidden about the clinician who will perform IVC measurements. The measures of CVP were recorded in cmH20.

Statistical analysis

SPSS V.16 was used in the analysis of data. For correlation, Pearson and spearman tests were used.

Results

120 patients were enrolled. 57 (47.5%) patients were males. 43 patients had subclavian catheter and 77 patients had jugular catheter. 66 (55%) patients required mechanical ventilation while 54 (45%) patients were spontaneously breathing. 38 (57.6%) of mechanically ventilated patients received volume mode and 28 (23.3%) received pressure mode. Table 1 shows the distribution of the patient’s diagnosis. CVP values and its corresponding IVC diameter and caval index measurements in mechanically ventilated and spontaneously breathing patients are shown in Table 2.

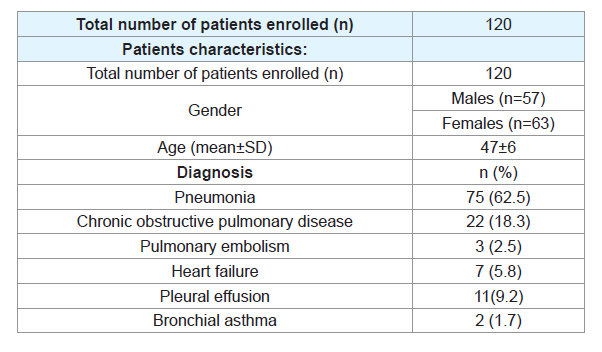

Table 1: The number and the percentage distribution of the patient's diagnosis.

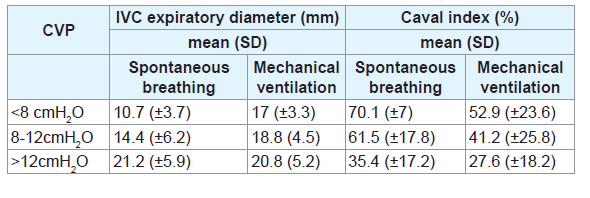

Table 2: CVP values and its corresponding IVC diameter and caval index measurements.

As regard the correlation between IVC measurements (IVC diameter and caval index) and CVP

Although a statistically significant correlation was found betweenIVC measurements (IVC diameter and caval index) and CVP inboth spontaneously breathing and mechanically ventilated patients(p<0.001), regression coefficients were higher among spontaneously breathing (r=0.74 for IVC diameter and -0.76 for caval index) than mechanically ventilated patients (r=0.4 for IVC diameter and -0.47 for caval index) (Table 3).

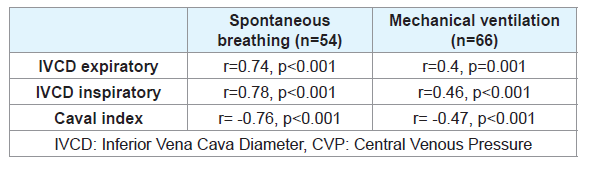

Table 3: Correlation of IVCD, caval index with CVP.
In deeply sedated mechanically ventilated patients, the mean difference between inspiratory and expiratory IVC diameter was (3±1.3 mm) which is not of clinical significance. IVC diameter increases with inspiration. Linear regression model showed mode of mechanical ventilation (pressure or volume mode) and peak inspiratory pressure (PIP) were insignificant in prediction of CVP (r=0.13, p=0.29).

Discussion

In this study, a significant relationship was found between CVP and sonographic IVC measurements (IVC diameter and caval index) in spontaneously breathing patients. However, this correlation was weak in mechanically ventilated patients whatever the mode (volume or pressure) and peak inspiratory pressure level. In accordance to these results, Citilcioglu S et al. 2014 also concluded that IVC diameter may be used for assessment of the intravascular volume status of spontaneously breathing patients but not accurate measure in mechanically ventilated patients [5]. Lorsomradee S et al. found strong correlation between IVC diameter and CVP (when CVP was ≤11 mmHg) in cardiac surgical patients [6]. In deeply sedated mechanically ventilated patients in this study, the mean difference between inspiratory and expiratory IVC diameter was (3±1.3 mm) which is not of clinical significance and could describe the weak correlation between IVC measurements (IVC diameter and caval index) and CVP in mechanically ventilated patients. Therefore, Measurement of IVC diameter in mechanically ventilated patients cannot accurately predict right atrial pressure. However, Feissel M et al. reported that respiratory variation in IVC diameter (ΔIVC=maximum-minimum diameters/the mean of both) is a simple method to determine fluid responsiveness in deeply sedated mechanically ventilated patients with septic shock and received a tidal volume ≥8 mL/kg [7]. Also, Naghipour B et al. found acceptable correlation between the IVC diameter and CVP but at the level of IVC entry into the right atrium using transesophageal echocardiography [8].

Conclusion

Ultrasonographic assessment of IVC diameter and caval index seems to be a simple and non invasive method to assess the fluid status in spontaneously breathing patients but its use in mechanically ventilated patients is not helpful.
